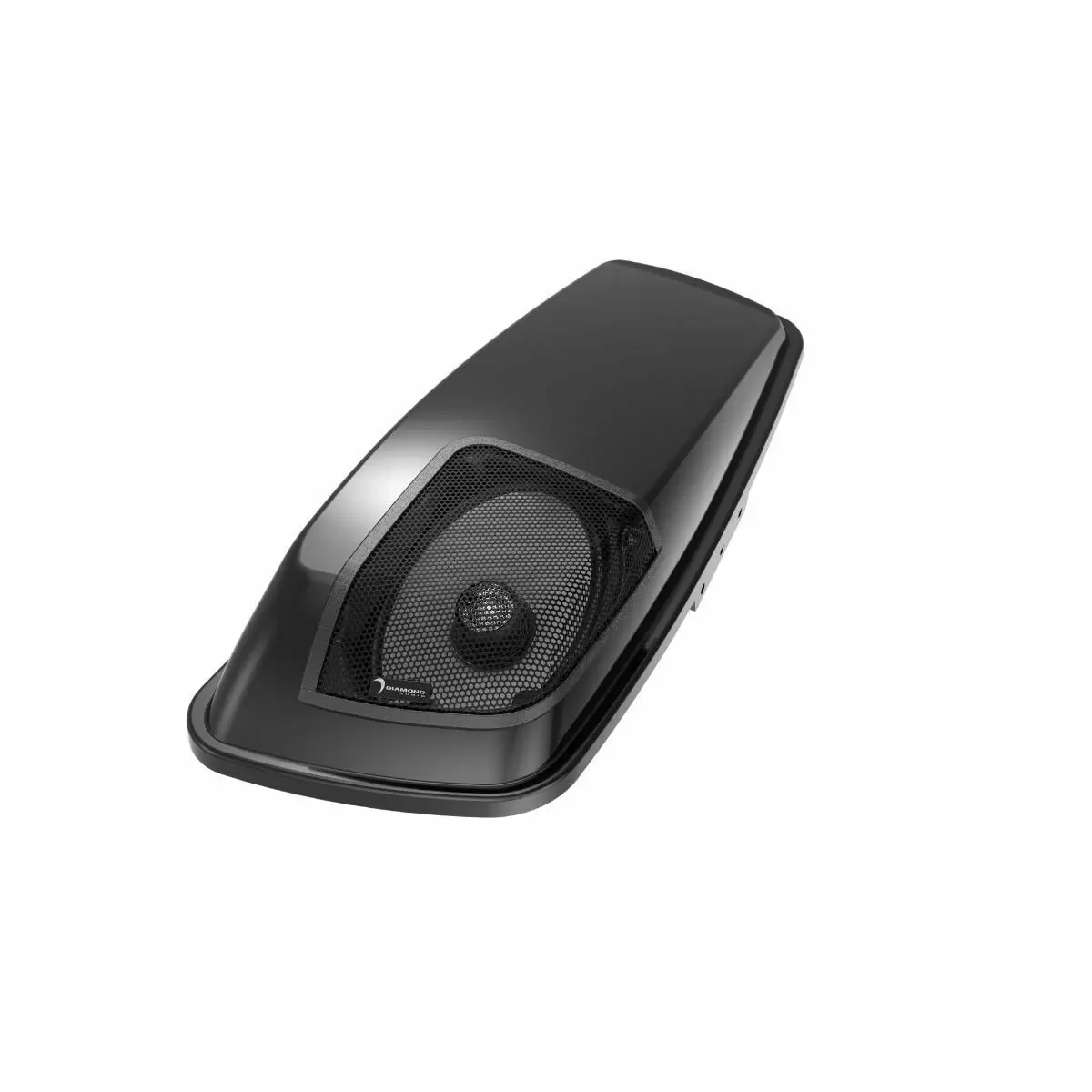

DIAMOND AUDIO 14+ Harley Davidson Cut in Lid Kit - MSHXM692LK (2&4 OHM)

 Features:

• Harley Davidson ® 14+ Cut in Lid Kit
• Included Rubber Gasket for HXM69F2
• Includes HXM69F2 Motor Sports 6” x 9” (2Ω) Marine Grade Speaker
• Includes Plug-n-Play Wire Harness W/ DLED Wiring



Speaker Size	6" X 9"
Nominal Diameter (inch/mm)	6×9″ (152×229mm)
Description	2014+ Harley Davidson Cut in Lid Kit - MSHXM692LK (2Ω)
Nominal Impedance (ohms)	2&4Ω
RMS Power Rating	150W
Max Power Rating	300W
Frequency Response	60-18KHz
Voice Coil Diameter (inch/mm)	1.75 (44.7) Woofer/1" (25mm) Tweeter
Power Handling (RMS/Peak)	150W/300W
Types	2-way
Qts	0.78
Fs-Free Air Resonance (Hz)	70
Vas (Liter)	0.689 (19.5)
Xmax - Inch(mm)	0.16 (4)
Sensitivity (1W/1M)	94dB
Sensitivity (2.83V/1M)	97dB
Mounting Diameter (inch/mm)	8.64×6.0″ (219.5×152.5mm)
Mounting Depth	3.15″ (80mm)
Grille	OPTIONAL
