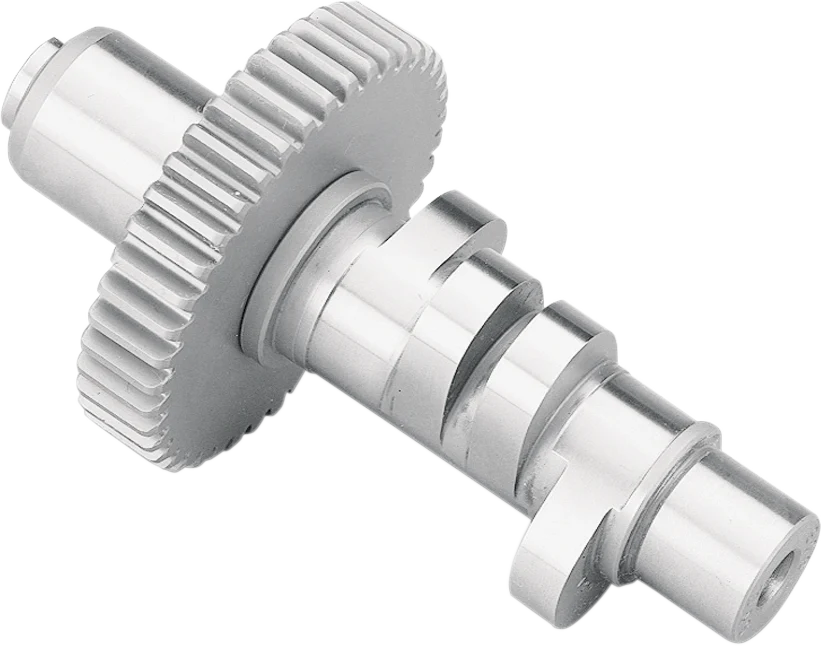

S&S CYCLE Camshaft - 600 - Evolution Big Twin '84-'00

Features

• S&S Cams are tested on the dyno, street and track before being offered to the public
• With hundreds of hours of testing on each cam, you know you are getting the best cam S&S can produce
• Works well in large-displacement engines 9.5:1 to 10.5:1 compression
• Works with hydraulic or solid tappets
• Makes best power in mid-range
• Requires high-lift springs
• Made in the USA

Notes

• Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

Product Name	Cam
Type	Gear
Application	Intake / Exhaust
Color/Finish	Raw
Grind	600 Series
Intake Lift	0.600"
Intake Open	20°
Intake Close	55°
Intake Duration	255°
Intake Lift at TDC	0.192"
Intake Lobe Centerline	107.5°
Exhaust Lift	0.600"
Exhaust Open	60°
Exhaust Close	20°
Exhaust Duration	260°
Exhaust Lift at TDC	0.184"
Exhaust Lobe Centerline	110°
Units	Each
Riding Style	Street
