S&S CYCLE Camshaft Kit - 475C Chain Drive - M8 '17-'20

Features

• Designed for 107"/114" motors, compatible with all stock valve train components

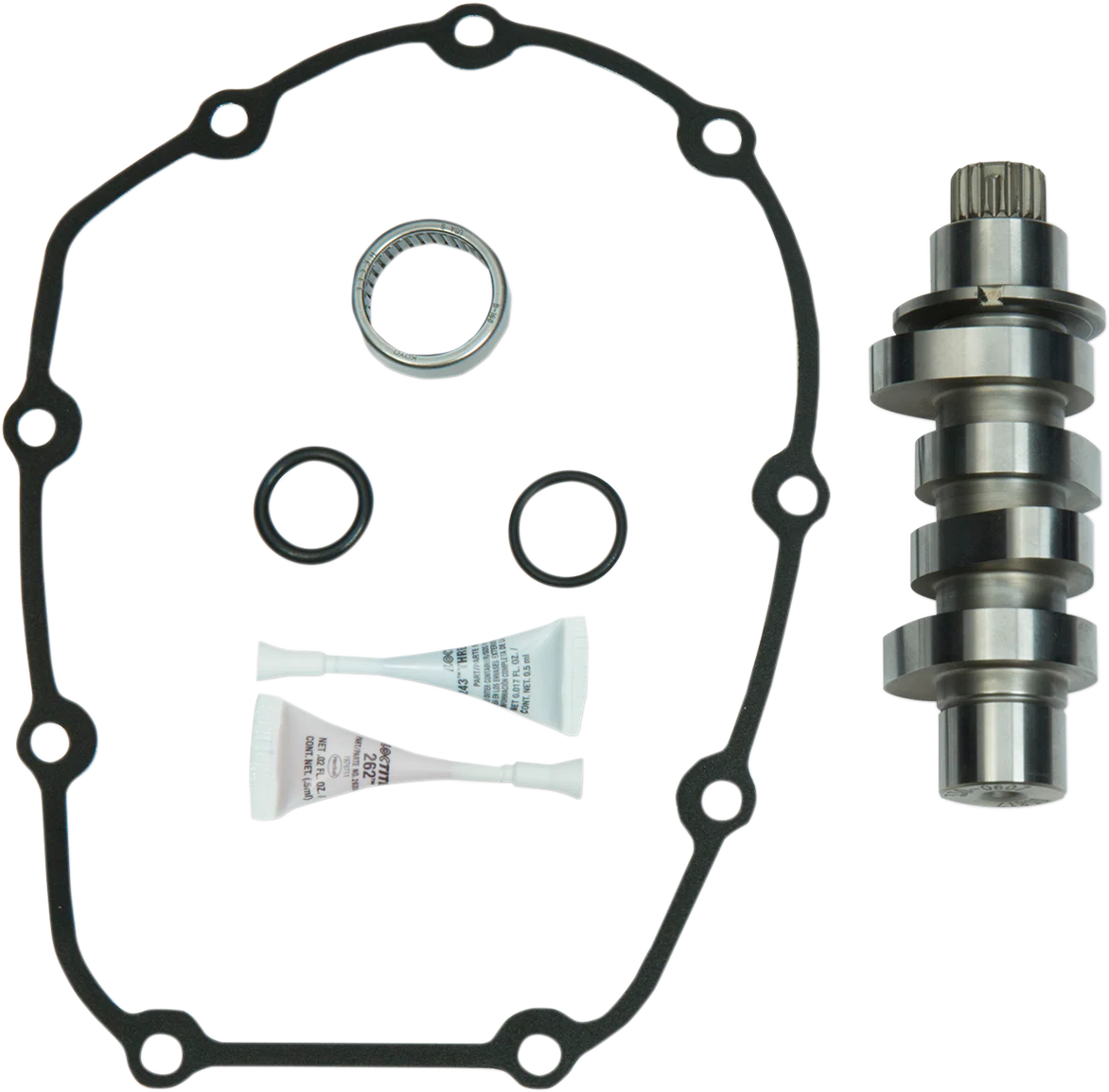

• Kit includes all required bearings, o-rings, and hardware
• Made in the USA

Notes

• Kit is for a 100 HP bolt in cam (when coupled with intake and exhaust).

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

Product Name	Cam
Type	Chain
Application	Intake / Exhaust
Grind	475C
Intake Lift	0.475"
Intake Open	6.2° Front, 2.2° Rear
Intake Close	27.2° Front, 31.2° Rear
Intake Duration	213.5° Front, 213.5° Rear
Intake Lift at TDC	0.107" Front, 0.093" Rear
Intake Lobe Centerline	100.5° Front, 104.5° Rear
Exhaust Lift	0.475"
Exhaust Open	55.5° Front, 52.2° Rear
Exhaust Close	28.5° Front, 20.2° Rear
Exhaust Duration	263.9° Front, 252.5° Rear
Exhaust Lift at TDC	0.208" Front, 0.170" Rear
Exhaust Lobe Centerline	103.5° Front, 106.0° Rear
Units	Kit
Riding Style	Street
