S&S CYCLE Camshaft Kit - 540G Gear Drive - M8'17-'21

Features

• Designed to add even more torque to your big bore M8, for those that keep the revs below 6000 rpm when combined with 124" and larger big bore kits
• Requires the use of adjustable pushrods and heavy duty springs (sold separately)

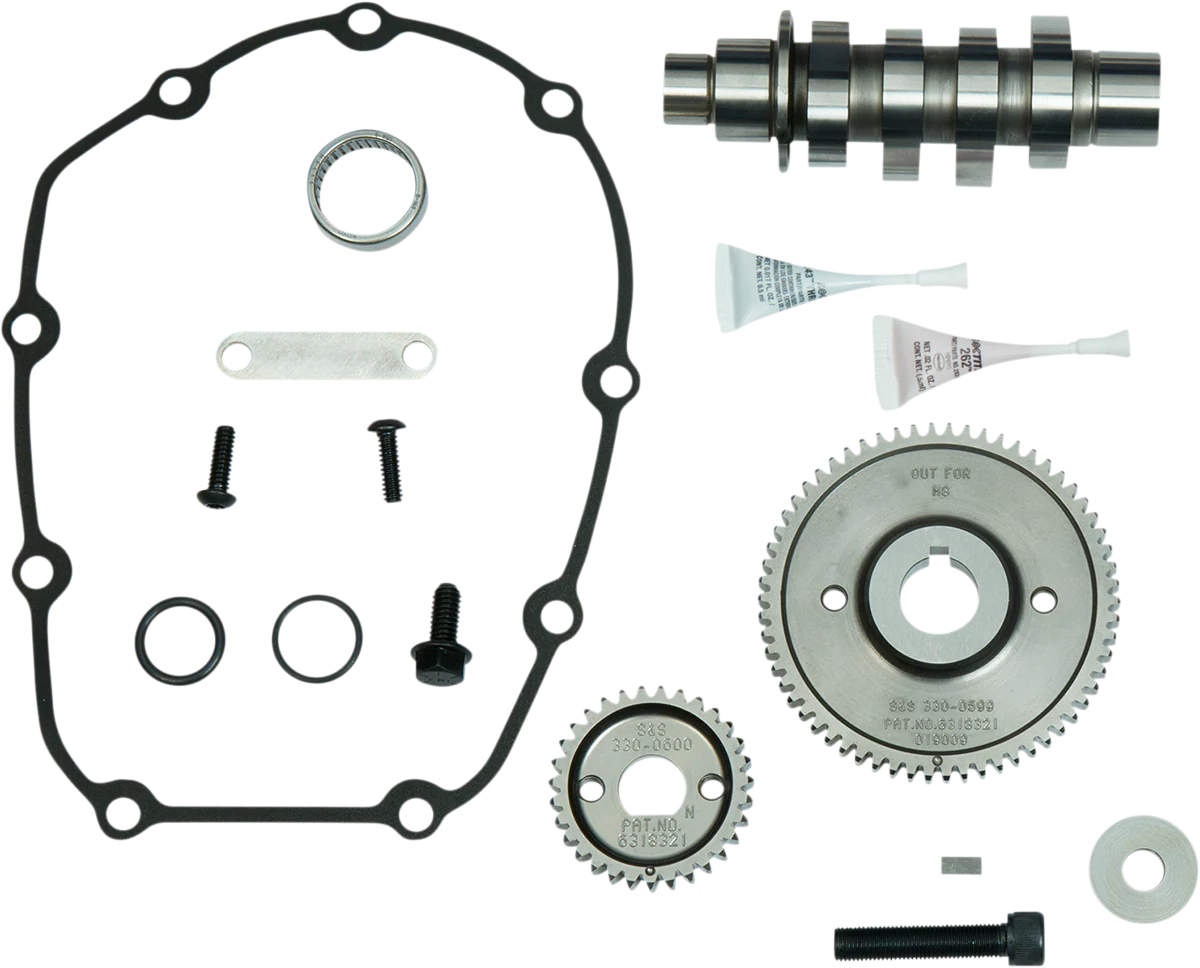

• Kit includes all required bearings, o-rings, gears and hardware
• Provides improved valve timing accuracy
• Made in the USA

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

Product Name	Camshaft
Type	Gear
Application	Exhaust / Intake
Model	Big Bore Torque
Grind	540G
Intake Lift	0.540"
Intake Open	17.7° Front, 14.9° Rear
Intake Close	30.6° Front, 28.7° Rear
Intake Duration	228.3° Front, 223.6° Rear
Intake Lift at TDC	0.175" Front, 0.161" Rear
Intake Lobe Centerline	96.4° Front, 96.9° Rear
Exhaust Lift	0.540"
Exhaust Open	21.2° Front, 37.7° Rear
Exhaust Close	33.9° Front, 26.9° Rear
Exhaust Duration	235.1° Front, 244.6° Rear
Exhaust Lift at TDC	0.262" Front, 0.216" Rear
Exhaust Lobe Centerline	83.6° Front, 95.4° Rear
Units	Kit
Riding Style	Street
