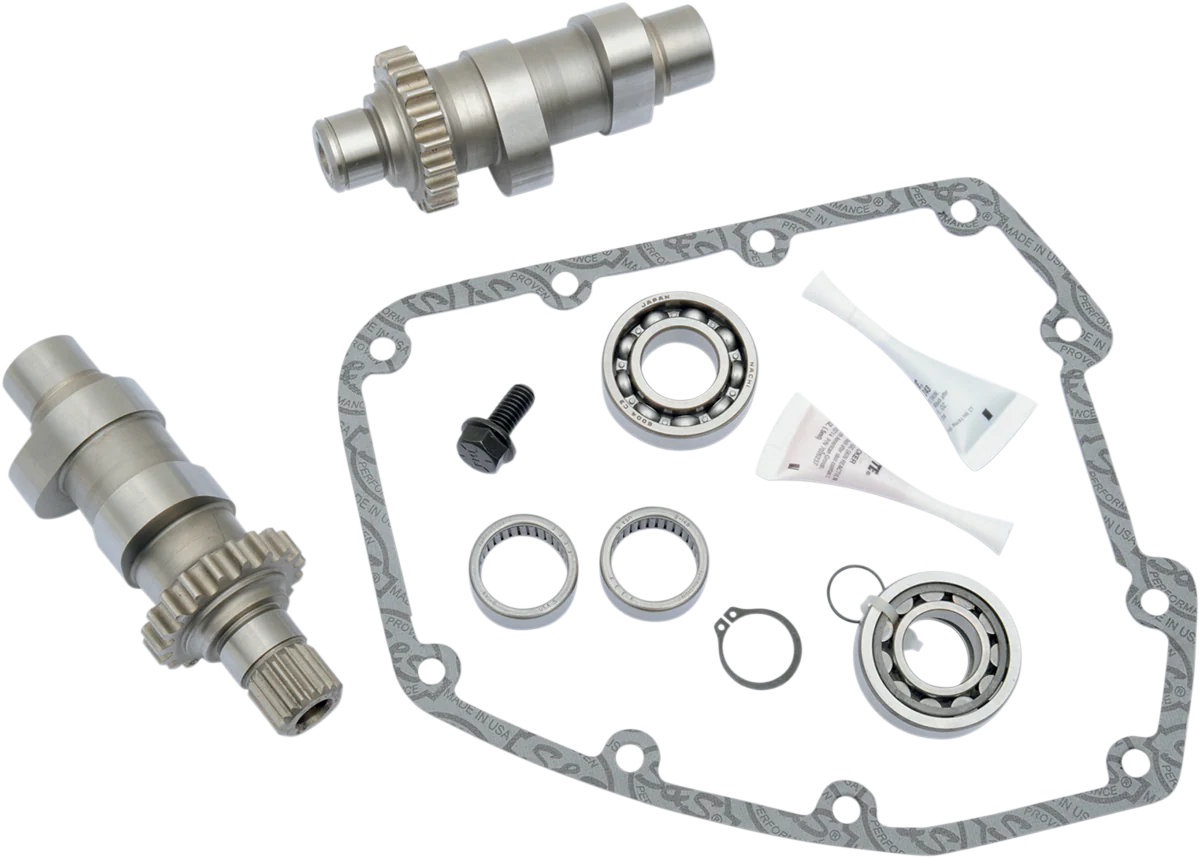

S&S CYCLE Camshaft Kit - 583C - Chain Drive - Twin Cam '99-'06

Features

• Great overall cam for Softail and Dyna
• Provides strong low-end torque and horsepower
• Strongest from 1500-5000 rpm
• Made in the USA

Notes

• Installer must check coil bind, valve to valve clearance and valve to piston clearance.
• Not recommended for engines having compression ratios greater the 10.1:1.
• Not for '06 Dyna
• Cams for '00-'06 Twin Cams are for use with stock splined drive gears; for installation on '99 Twin Cams requires splined outer sprocket, S&S recommends Andrews 4340 steel drive sprocket.
• Some models require high-lift springs.

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

Product Name	Camshaft Kit
Type	Chain
Application	Intake / Exhaust
Grind	583 Series
Intake Lift	0.583"
Intake Open	8°
Intake Close	18°
Intake Duration	203°
Intake Lift at TDC	0.113"
Intake Lobe Centerline	96.5°
Exhaust Lift	0.583"
Exhaust Open	58°
Exhaust Close	24°
Exhaust Duration	262°
Exhaust Lift at TDC	0.206"
Exhaust Lobe Centerline	107°
Units	Kit
Riding Style	Street
